+<table style="border-collapse: collapse; border: none;">
+  <tr style="border-collapse: collapse; border: none;">
+    <td style="border-collapse: collapse; border: none;">
+      <a href="http://www.openairinterface.org/">
+         <img src="./images/oai_final_logo.png" alt="" border=3 height=50 width=150>
+         </img>
+      </a>
+    </td>
+    <td style="border-collapse: collapse; border: none; vertical-align: center;">
+      <b><font size = "5">OpenAirInterface Blueprints</font></b>
+    </td>
+  </tr>
+</table>
+
+This repository contains blueprints for different use-cases where OAI components can be used.
+
+Below is the list of available blueprints
+
+1. [OpenAirInterface Multi-access Edge Computing Platform](./mep/README.md)
\ No newline at end of file

mep/README.md

+<table style="border-collapse: collapse; border: none;">
+  <tr style="border-collapse: collapse; border: none;">
+    <td style="border-collapse: collapse; border: none;">
+      <a href="http://www.openairinterface.org/">
+         <img src="../images/oai_final_logo.png" alt="" border=3 height=50 width=150>
+         </img>
+      </a>
+    </td>
+    <td style="border-collapse: collapse; border: none; vertical-align: center;">
+      <b><font size = "5">OpenAirInterface Multi-access Edge Computing Platform Blueprint</font></b>
+    </td>
+  </tr>
+</table>
+
+Multi-access Edge Computing platforms (MEP) is a part of the ETSI MEC architecture. Our implementation of MEC platform allows different MEC applications to discover MEP hosted services and register their own service which can be discovered by other MEC applications.
+
+[OAI-MEP](https://gitlab.eurecom.fr/oai/orchestration/oai-mec/oai-mep) follows ETSI GS MEC 003 V3.1.1. MEC appications communicate with MEP via `mp1` interface and applications hosted at MEP communicates with Radio Access Network (RAN) and Core Network (CN) components via `mp2` interface. MEC [Radio Network Information Service (RNIS)](https://gitlab.eurecom.fr/oai/orchestration/oai-mec/oai-rnis) is based on ETSI GS MEC 012. It collects the radio network information via `mp2` interface and exposes to interested applications via `mp1`.
+
+This blueprint showcases the abilities of OAI-MEP and OAI-RNIS in ETSI MEC Framework.
+

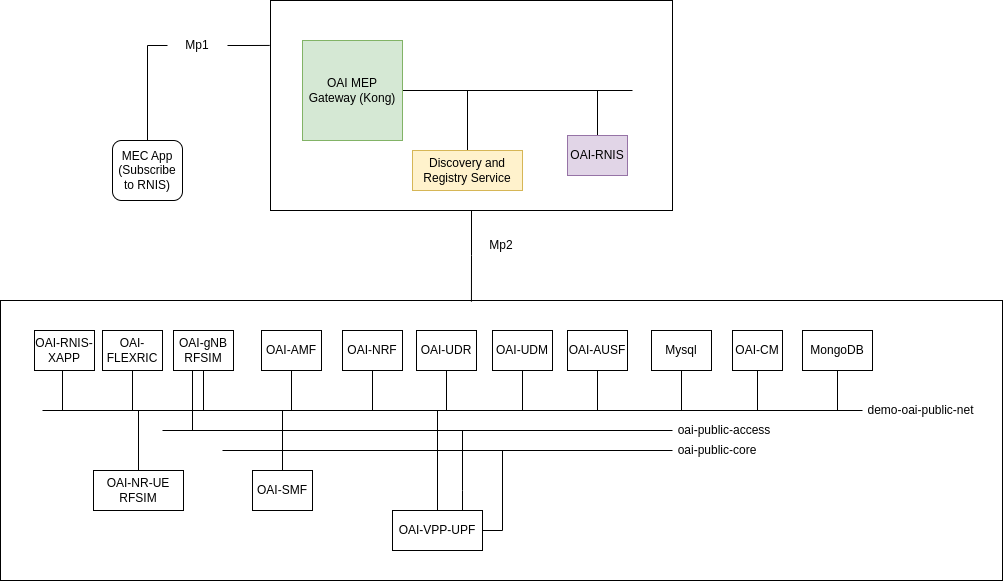

+![](../images/mep_blueprint.png)
+
+
+
+**TABLE OF CONTENTS**
+1.  [Overview](#1-overview)
+2.  [Deploy Core and Ran Components](#2-deploy-core-and-ran-components)
+3.  [Deploy OAI-MEP](#3-deploy-oai-mep)
+4.  [Deploy OAI-RNIS](#4-deploy-oai-rnis)
+5.  [Consume RAN KPIs from OAI-RNIS](#5-consume-ran-kpis-from-oai-rnis)
+6.  [Clean Up](#6-clean-up)
+7.  [Leave a Feeback or Ask Questions](#7-leave-a-feedback-or-ask-questions)
+
+## 1. Overview
+
+This blueprint showcases an implementation of [ETSI Multi-access Edge Computing Platform (MEP)](https://www.etsi.org/deliver/etsi_gs/MEC/001_099/003/03.01.01_60/gs_MEC003v030101p.pdf) and[ Radio Network Information Service (RNIS)](https://www.etsi.org/deliver/etsi_gs/MEC/001_099/012/02.01.01_60/gs_mec012v020101p.pdf) for 5G. The goal of this blueprint is to demonstrate a MEC application consuming RAN and Core KPIs exposed via RNIS. We are using oai 5g core basic deployment with vpp-upf. At the moment only VPP-UPF provides user monitoring information.
+
+Though in this blueprint we are using oai-gnb and oai-nr-ue in RFsimulated mode it is possible to use oai-gnb with a COTS UE. In our labs we test with both RFSim and COTSUE. Testing with RFSIM is easy and avoids the need of having hardware to understand how RNIS works.
+
+
+### 1.1 Pre-requisite
+
+1. Docker version > 22
+2. CPU with avx2 (needed for gNB and nr-ue)
+3. Tested on Ubuntu 22.04, 20.04 and 18.04
+4. 8CPU and 16GB of RAM
+
+**Note**: In docker version 23 and above compose command is integrated in docker cli. So you can use `docker compose` instead of `docker-compose`
+
+## 2. Deploy the Core and RAN Components
+
+All the docker images which will be used in this blueprint are present in our official docker hub repository.
+
+### 2.1 Deploy OAI 5G Core Network
+
+We are using release v1.5.0 of oai 5g core network basic deployment with vpp-upf.
+
+```shell
+docker-compose -f docker-compose/docker-compose-core-network.yaml up -d
+```
+Check if the core network is healthy
+
+```shell
+docker-compose -f docker-compose/docker-compose-core-network.yaml ps -a
+```
+
+### 2.2 Deploy OAI-Configuration Manager (OAI-CM)
+
+The role of [oai-configuration manager](https://gitlab.eurecom.fr/oai/orchestration/oai-cm) is to subscribe the events from the core network functions and expose it to other components. Later it will have the ability to configure the core network functions using a GUI.
+
+```shell
+docker-compose -f docker-compose/docker-compose-cm.yaml up -d
+```
+
+Check if the components are healty
+
+```shell
+docker-compose -f docker-compose/docker-compose-cm.yaml ps -a
+```
+### 2.3 Deploy RAN Components
+
+In this blueprint we are using OAI-gNB in RFSimulated mode it is possible to use it with COTS UE. We are using FlexRIC version 1.0.0 and gNB branch mep-compatible. At the time of writing this blueprint flexric version 1.0.0 required gNB tag `2022.41` our branch is based on this tag. Once FlexRIC E2 agent is merged in develop branch we will start using develop branch of oai-gnb.
+
+```shell
+docker-compose -f docker-compose/docker-compose-ran.yaml up -d oai-gnb oai-flexric rabbitmq
+```
+
+Check if the ran components are healthy
+
+```shell
+docker-compose -f docker-compose/docker-compose-ran.yaml ps -a
+```
+Now deploy the RNIS xAPP
+
+```shell
+docker-compose -f docker-compose/docker-compose-ran.yaml up -d oai-rnis-xapp
+```
+
+To verify that everything is done correctly so far, login to RabbitMq management console http://192.168.70.166:15672/#/queues to see that message queue `rnis_xapp` has been created. RabbitMq username and password is `user|passsword` If the queue has been created then please move forward.
+
+
+## 3. Deploy OAI-MEP
+
+```shell
+docker-compose -f docker-compose/docker-compose-mep.yaml up -d
+```
+
+Check if MEP components are healthy
+
+```shell
+docker-compose -f docker-compose/docker-compose-mep.yaml ps -a
+```
+
+Add the below line in your `/etc/hosts` else MEP will not be able to route the `mp1` traffic to the right service hosted at the mep.
+
+```shell
+192.168.70.2 oai-mep.org
+```
+
+To access the OpenAPI defination or swagger GUI of MEP --> http://oai-mep.org/service_registry/v1/ui
+
+## 4. Deploy OAI-RNIS
+
+Now lets deploy OAI-RNIS and expose it via `mp1` interface so that a MEC application can consume Radio Network KPIs. When RNIS starts it automatically sends a service registration request to MEP.
+
+```shell
+docker-compose -f docker-compose/docker-compose-rnis.yaml up -d
+```
+
+Check if RNIS is healthy
+
+```shell
+docker-compose -f docker-compose/docker-compose-rnis.yaml ps -a
+```
+
+To access the OpenAPI defination or swagger GUI of RNIS --> http://oai-mep.org/rnis/v2/ui
+
+You can check the services exposed by MEP via
+
+```shell
+curl http://oai-mep.org/service_registry/v1/discover
+```
+
+## 5. Consume RAN KPIs from OAI-RNIS
+
+There are two ways to fetch KPIs from RNIS either via a get request or via subscribing and then RNIS will send the KPIs automatically.
+
+To fetch the KPIs via get request
+
+```shell
+curl -X 'GET' 'http://oai-mep.org/rnis/v2/queries/layer2_meas' -H 'accept: application/json'
+```
+
+To subscribe the RNIS KPIs we have created an example MEC application which consumes the KPIs via `mp1` interface. The MEC application is written using Python Flask framework.
+
+To setup the environment for MEC application, create a virtual python environment using pyvenv or virtualenv if you want or you can skip this setup and install the prerequisite
+
+```shell
+#create a virtual python environment (Optional)
+virtualenv -p python3 venv
+## Install prerequisite (Mandatory)
+pip install flask requests
+```
+
+Start the application
+
+```shell
+python examples/example-mec-app.py
+```
+
+Start the UE
+
+```shell
+docker-compose -f docker-compose/docker-compose-ran.yaml up -d oai-nr-ue
+```
+
+Now you can see in the dashboard of example app that there RAN KPIs or you can fetch manually via
+
+```shell
+curl -X 'GET' 'http://oai-mep.org/rnis/v2/queries/layer2_meas' -H 'accept: application/json'
+```
+
+At the moment in RF simulator some of the KPIs are static. If you know how to change the channel module in oai-gNB RFSIM then you can play with that.
+
+## 6. Clean Up
+
+To stop the containers you can run:
+
+```shell
+docker-compose -f docker-compose/docker-compose-core-network.yaml down -t2
+docker-compose -f docker-compose/docker-compose-ran.yaml down -t2
+docker-compose -f docker-compose/docker-compose-cm.yaml down -t2
+docker-compose -f docker-compose/docker-compose-mep.yaml down -t2
+docker-compose -f docker-compose/docker-compose-rnis.yaml down -t2
+```
+
+Remove the below entry from `/etc/hosts`
+
+```shell
+192.168.70.2 oai-mep.org
+```
+
+## 7. Leave a Feedback or Ask Questions
+
+If you have questions or want to leave a feedback feel free to send us an email at `netsoft@eurecom.fr`
\ No newline at end of file

mep/docker-compose/conf/config.ini

+[XAPP]
+RemoteRabbitmqAddress = 192.168.70.166
+RemoteRabbitmqPort = 5672
+RemoteRabbitMqUsername = user
+RemoteRabbitMqPassword = password
+SQliteDBPath = /flexric/db/
+SQliteDBName = xapp_rnis_db
+LogLevel = info
+publishTime = 0.01
\ No newline at end of file

mep/docker-compose/conf/flexric.conf

+[NEAR-RIC]
+NEAR_RIC_IP = 192.168.70.164
+
+[XAPP]
+DB_PATH = /flexric/db/
+DB_NAME = xapp_rnis_db
\ No newline at end of file

mep/docker-compose/database/oai_db.sql

+-- phpMyAdmin SQL Dump
+-- version 5.1.0
+-- https://www.phpmyadmin.net/
+--
+-- Host: 172.16.200.10:3306
+-- Generation Time: Mar 22, 2021 at 10:31 AM
+-- Server version: 5.7.33
+-- PHP Version: 7.4.15
+
+SET SQL_MODE = "NO_AUTO_VALUE_ON_ZERO";
+START TRANSACTION;
+SET time_zone = "+00:00";
+
+
+/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
+/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
+/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
+/*!40101 SET NAMES utf8mb4 */;
+
+--
+-- Database: `oai_db`
+--
+
+-- --------------------------------------------------------
+
+--
+-- Table structure for table `AccessAndMobilitySubscriptionData`
+--
+
+CREATE TABLE `AccessAndMobilitySubscriptionData` (
+  `ueid` varchar(15) NOT NULL,
+  `servingPlmnid` varchar(15) NOT NULL,
+  `supportedFeatures` varchar(50) DEFAULT NULL,
+  `gpsis` json DEFAULT NULL,
+  `internalGroupIds` json DEFAULT NULL,
+  `sharedVnGroupDataIds` json DEFAULT NULL,
+  `subscribedUeAmbr` json DEFAULT NULL,
+  `nssai` json DEFAULT NULL,
+  `ratRestrictions` json DEFAULT NULL,
+  `forbiddenAreas` json DEFAULT NULL,
+  `serviceAreaRestriction` json DEFAULT NULL,
+  `coreNetworkTypeRestrictions` json DEFAULT NULL,
+  `rfspIndex` int(10) DEFAULT NULL,
+  `subsRegTimer` int(10) DEFAULT NULL,
+  `ueUsageType` int(10) DEFAULT NULL,
+  `mpsPriority` tinyint(1) DEFAULT NULL,
+  `mcsPriority` tinyint(1) DEFAULT NULL,
+  `activeTime` int(10) DEFAULT NULL,
+  `sorInfo` json DEFAULT NULL,
+  `sorInfoExpectInd` tinyint(1) DEFAULT NULL,
+  `sorafRetrieval` tinyint(1) DEFAULT NULL,
+  `sorUpdateIndicatorList` json DEFAULT NULL,
+  `upuInfo` json DEFAULT NULL,
+  `micoAllowed` tinyint(1) DEFAULT NULL,
+  `sharedAmDataIds` json DEFAULT NULL,
+  `odbPacketServices` json DEFAULT NULL,
+  `serviceGapTime` int(10) DEFAULT NULL,
+  `mdtUserConsent` json DEFAULT NULL,
+  `mdtConfiguration` json DEFAULT NULL,
+  `traceData` json DEFAULT NULL,
+  `cagData` json DEFAULT NULL,
+  `stnSr` varchar(50) DEFAULT NULL,
+  `cMsisdn` varchar(50) DEFAULT NULL,
+  `nbIoTUePriority` int(10) DEFAULT NULL,
+  `nssaiInclusionAllowed` tinyint(1) DEFAULT NULL,
+  `rgWirelineCharacteristics` varchar(50) DEFAULT NULL,
+  `ecRestrictionDataWb` json DEFAULT NULL,
+  `ecRestrictionDataNb` tinyint(1) DEFAULT NULL,
+  `expectedUeBehaviourList` json DEFAULT NULL,
+  `primaryRatRestrictions` json DEFAULT NULL,
+  `secondaryRatRestrictions` json DEFAULT NULL,
+  `edrxParametersList` json DEFAULT NULL,
+  `ptwParametersList` json DEFAULT NULL,
+  `iabOperationAllowed` tinyint(1) DEFAULT NULL,
+  `wirelineForbiddenAreas` json DEFAULT NULL,
+  `wirelineServiceAreaRestriction` json DEFAULT NULL
+) ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+-- --------------------------------------------------------
+
+--
+-- Table structure for table `Amf3GppAccessRegistration`
+--
+
+CREATE TABLE `Amf3GppAccessRegistration` (
+  `ueid` varchar(15) NOT NULL,
+  `amfInstanceId` varchar(50) NOT NULL,
+  `supportedFeatures` varchar(50) DEFAULT NULL,
+  `purgeFlag` tinyint(1) DEFAULT NULL,
+  `pei` varchar(50) DEFAULT NULL,
+  `imsVoPs` json DEFAULT NULL,
+  `deregCallbackUri` varchar(50) NOT NULL,
+  `amfServiceNameDereg` json DEFAULT NULL,
+  `pcscfRestorationCallbackUri` varchar(50) DEFAULT NULL,
+  `amfServiceNamePcscfRest` json DEFAULT NULL,
+  `initialRegistrationInd` tinyint(1) DEFAULT NULL,
+  `guami` json NOT NULL,
+  `backupAmfInfo` json DEFAULT NULL,
+  `drFlag` tinyint(1) DEFAULT NULL,
+  `ratType` json NOT NULL,
+  `urrpIndicator` tinyint(1) DEFAULT NULL,
+  `amfEeSubscriptionId` varchar(50) DEFAULT NULL,
+  `epsInterworkingInfo` json DEFAULT NULL,
+  `ueSrvccCapability` tinyint(1) DEFAULT NULL,
+  `registrationTime` varchar(50) DEFAULT NULL,
+  `vgmlcAddress` json DEFAULT NULL,
+  `contextInfo` json DEFAULT NULL,
+  `noEeSubscriptionInd` tinyint(1) DEFAULT NULL
+) ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+-- --------------------------------------------------------
+
+--
+-- Table structure for table `AuthenticationStatus`
+--
+
+CREATE TABLE `AuthenticationStatus` (
+  `ueid` varchar(20) NOT NULL,
+  `nfInstanceId` varchar(50) NOT NULL,
+  `success` tinyint(1) NOT NULL,
+  `timeStamp` varchar(50) NOT NULL,
+  `authType` varchar(25) NOT NULL,
+  `servingNetworkName` varchar(50) NOT NULL,
+  `authRemovalInd` tinyint(1) DEFAULT NULL
+) ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+-- --------------------------------------------------------
+
+--
+-- Table structure for table `AuthenticationSubscription`
+--
+
+CREATE TABLE `AuthenticationSubscription` (
+  `ueid` varchar(20) NOT NULL,
+  `authenticationMethod` varchar(25) NOT NULL,
+  `encPermanentKey` varchar(50) DEFAULT NULL,
+  `protectionParameterId` varchar(50) DEFAULT NULL,
+  `sequenceNumber` json DEFAULT NULL,
+  `authenticationManagementField` varchar(50) DEFAULT NULL,
+  `algorithmId` varchar(50) DEFAULT NULL,
+  `encOpcKey` varchar(50) DEFAULT NULL,
+  `encTopcKey` varchar(50) DEFAULT NULL,
+  `vectorGenerationInHss` tinyint(1) DEFAULT NULL,
+  `n5gcAuthMethod` varchar(15) DEFAULT NULL,
+  `rgAuthenticationInd` tinyint(1) DEFAULT NULL,
+  `supi` varchar(20) DEFAULT NULL
+) ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+--
+-- Dumping data for table `AuthenticationSubscription`
+--
+
+INSERT INTO `AuthenticationSubscription` (`ueid`, `authenticationMethod`, `encPermanentKey`, `protectionParameterId`, `sequenceNumber`, `authenticationManagementField`, `algorithmId`, `encOpcKey`, `encTopcKey`, `vectorGenerationInHss`, `n5gcAuthMethod`, `rgAuthenticationInd`, `supi`) VALUES
+('208990100001120', '5G_AKA', 'fec86ba6eb707ed08905757b1bb44b8f', 'fec86ba6eb707ed08905757b1bb44b8f', '{\"sqn\": \"000000000020\", \"sqnScheme\": \"NON_TIME_BASED\", \"lastIndexes\": {\"ausf\": 0}}', '8000', 'milenage', 'c42449363bbad02b66d16bc975d77cc1', NULL, NULL, NULL, NULL, '208990100001120');
+-- --------------------------------------------------------
+
+--
+-- Table structure for table `SdmSubscriptions`
+--
+
+CREATE TABLE `SdmSubscriptions` (
+  `ueid` varchar(15) NOT NULL,
+  `subsId` int(10) UNSIGNED NOT NULL,
+  `nfInstanceId` varchar(50) NOT NULL,
+  `implicitUnsubscribe` tinyint(1) DEFAULT NULL,
+  `expires` varchar(50) DEFAULT NULL,
+  `callbackReference` varchar(50) NOT NULL,
+  `amfServiceName` json DEFAULT NULL,
+  `monitoredResourceUris` json NOT NULL,
+  `singleNssai` json DEFAULT NULL,
+  `dnn` varchar(50) DEFAULT NULL,
+  `subscriptionId` varchar(50) DEFAULT NULL,
+  `plmnId` json DEFAULT NULL,
+  `immediateReport` tinyint(1) DEFAULT NULL,
+  `report` json DEFAULT NULL,
+  `supportedFeatures` varchar(50) DEFAULT NULL,
+  `contextInfo` json DEFAULT NULL
+) ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+-- --------------------------------------------------------
+
+--
+-- Table structure for table `SessionManagementSubscriptionData`
+--
+
+CREATE TABLE `SessionManagementSubscriptionData` (
+  `ueid` varchar(15) NOT NULL,
+  `servingPlmnid` varchar(15) NOT NULL,
+  `singleNssai` json NOT NULL,
+  `dnnConfigurations` json DEFAULT NULL,
+  `internalGroupIds` json DEFAULT NULL,
+  `sharedVnGroupDataIds` json DEFAULT NULL,
+  `sharedDnnConfigurationsId` varchar(50) DEFAULT NULL,
+  `odbPacketServices` json DEFAULT NULL,
+  `traceData` json DEFAULT NULL,
+  `sharedTraceDataId` varchar(50) DEFAULT NULL,
+  `expectedUeBehavioursList` json DEFAULT NULL,
+  `suggestedPacketNumDlList` json DEFAULT NULL,
+  `3gppChargingCharacteristics` varchar(50) DEFAULT NULL
+) ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+--
+-- Dumping data for table `SessionManagementSubscriptionData`
+--
+
+INSERT INTO `SessionManagementSubscriptionData` (`ueid`, `servingPlmnid`, `singleNssai`, `dnnConfigurations`) VALUES
+('208990100001120', '20899', '{\"sst\": 1, \"sd\": \"16777215\"}','{\"oai.ipv4\":{\"pduSessionTypes\":{ \"defaultSessionType\": \"IPV4\"},\"sscModes\": {\"defaultSscMode\": \"SSC_MODE_1\"},\"5gQosProfile\": {\"5qi\": 6,\"arp\":{\"priorityLevel\": 1,\"preemptCap\": \"NOT_PREEMPT\",\"preemptVuln\":\"NOT_PREEMPTABLE\"},\"priorityLevel\":1},\"sessionAmbr\":{\"uplink\":\"100Mbps\", \"downlink\":\"100Mbps\"},\"staticIpAddress\":[{\"ipv4Addr\": \"12.1.1.2\"}]}}');
+-- --------------------------------------------------------
+
+--
+-- Table structure for table `SmfRegistrations`
+--
+
+CREATE TABLE `SmfRegistrations` (
+  `ueid` varchar(15) NOT NULL,
+  `subpduSessionId` int(10) NOT NULL,
+  `smfInstanceId` varchar(50) NOT NULL,
+  `smfSetId` varchar(50) DEFAULT NULL,
+  `supportedFeatures` varchar(50) DEFAULT NULL,
+  `pduSessionId` int(10) NOT NULL,
+  `singleNssai` json NOT NULL,
+  `dnn` varchar(50) DEFAULT NULL,
+  `emergencyServices` tinyint(1) DEFAULT NULL,
+  `pcscfRestorationCallbackUri` varchar(50) DEFAULT NULL,
+  `plmnId` json NOT NULL,
+  `pgwFqdn` varchar(50) DEFAULT NULL,
+  `epdgInd` tinyint(1) DEFAULT NULL,
+  `deregCallbackUri` varchar(50) DEFAULT NULL,
+  `registrationReason` json DEFAULT NULL,
+  `registrationTime` varchar(50) DEFAULT NULL,
+  `contextInfo` json DEFAULT NULL
+) ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+-- --------------------------------------------------------
+
+--
+-- Table structure for table `SmfSelectionSubscriptionData`
+--
+
+CREATE TABLE `SmfSelectionSubscriptionData` (
+  `ueid` varchar(15) NOT NULL,
+  `servingPlmnid` varchar(15) NOT NULL,
+  `supportedFeatures` varchar(50) DEFAULT NULL,
+  `subscribedSnssaiInfos` json DEFAULT NULL,
+  `sharedSnssaiInfosId` varchar(50) DEFAULT NULL
+) ENGINE=InnoDB DEFAULT CHARSET=utf8;
+
+--
+-- Indexes for dumped tables
+--
+
+--
+-- Indexes for table `AccessAndMobilitySubscriptionData`
+--
+ALTER TABLE `AccessAndMobilitySubscriptionData`
+  ADD PRIMARY KEY (`ueid`,`servingPlmnid`) USING BTREE;
+
+--
+-- Indexes for table `Amf3GppAccessRegistration`
+--
+ALTER TABLE `Amf3GppAccessRegistration`
+  ADD PRIMARY KEY (`ueid`);
+
+--
+-- Indexes for table `AuthenticationStatus`
+--
+ALTER TABLE `AuthenticationStatus`
+  ADD PRIMARY KEY (`ueid`);
+
+--
+-- Indexes for table `AuthenticationSubscription`
+--
+ALTER TABLE `AuthenticationSubscription`
+  ADD PRIMARY KEY (`ueid`);
+
+--
+-- Indexes for table `SdmSubscriptions`
+--
+ALTER TABLE `SdmSubscriptions`
+  ADD PRIMARY KEY (`subsId`,`ueid`) USING BTREE;
+
+--
+-- Indexes for table `SessionManagementSubscriptionData`
+--
+ALTER TABLE `SessionManagementSubscriptionData`
+  ADD PRIMARY KEY (`ueid`,`servingPlmnid`) USING BTREE;
+
+--
+-- Indexes for table `SmfRegistrations`
+--
+ALTER TABLE `SmfRegistrations`
+  ADD PRIMARY KEY (`ueid`,`subpduSessionId`) USING BTREE;
+
+--
+-- Indexes for table `SmfSelectionSubscriptionData`
+--
+ALTER TABLE `SmfSelectionSubscriptionData`
+  ADD PRIMARY KEY (`ueid`,`servingPlmnid`) USING BTREE;
+
+--
+-- AUTO_INCREMENT for dumped tables
+--
+
+--
+-- AUTO_INCREMENT for table `SdmSubscriptions`
+--
+ALTER TABLE `SdmSubscriptions`
+  MODIFY `subsId` int(10) UNSIGNED NOT NULL AUTO_INCREMENT, AUTO_INCREMENT=3;
+COMMIT;
+
+/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
+/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
+/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
+

mep/docker-compose/docker-compose-cm.yaml

+version: "3.8"
+services:
+  #######################################
+  # OAI CM
+  #######################################
+  oai-cm:
+    image: oaisoftwarealliance/oai-cm:latest
+    container_name: "oai-cm"
+    restart: always
+    environment:
+      CONFIG_FILE: '/usr/local/etc/configuration.yaml'
+      MOUNT_CONFIG: 'no'
+      PORT: 80              #application port
+      LOG_LEVEL: info
+      HOST: 192.168.70.168  ## Really important it should be reachable from amf and smf
+      DATABASE_HOST: mongodb
+      AMF_HOST: 192.168.70.132
+      SMF_HOST: 192.168.70.133
+      DATABASE_PORT: 27017
+      DATABASE_USER: admin
+      DATABASE_PASSWORD: linux
+      RESET_DATABASE: 'yes'    #whenever mep is restarted database will be re-initialized
+    depends_on:
+      - mongodb
+    healthcheck:
+      test: /bin/sh -c "pgrep oai_cm"
+      interval: 5s
+      timeout: 5s
+      retries: 5
+    networks:
+       public_net:
+          ipv4_address: 192.168.70.168
+  mongodb:
+    image: mongo:latest
+    container_name: "mongodb"
+    environment:
+      MONGO_INITDB_ROOT_USERNAME: admin
+      MONGO_INITDB_ROOT_PASSWORD: linux
+    command: mongod
+    healthcheck:
+      test: /bin/sh -c "pgrep mongod"
+      interval: 5s
+      timeout: 5s
+      retries: 5
+    networks:
+       public_net:
+          ipv4_address: 192.168.70.167
+networks:
+    public_net:
+        driver: bridge
+        name: demo-oai-public-net
+        ipam:
+            config:
+                - subnet: 192.168.70.0/24
+        driver_opts:
+            com.docker.network.bridge.name: "demo-oai"

mep/docker-compose/docker-compose-core-network.yaml

+version: '3.8'
+services:
+    mysql:
+        container_name: "mysql"
+        image: mysql:8.0
+        volumes:
+            - ./database/oai_db.sql:/docker-entrypoint-initdb.d/oai_db.sql
+            - ./healthscripts/mysql-healthcheck.sh:/tmp/mysql-healthcheck.sh
+        environment:
+            - TZ=Europe/Paris
+            - MYSQL_DATABASE=oai_db
+            - MYSQL_USER=test
+            - MYSQL_PASSWORD=test
+            - MYSQL_ROOT_PASSWORD=linux
+        healthcheck:
+            test: /bin/bash -c "/tmp/mysql-healthcheck.sh"
+            interval: 10s
+            timeout: 5s
+            retries: 30
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.131
+    oai-udr:
+        container_name: "oai-udr"
+        image: oaisoftwarealliance/oai-udr:v1.5.0
+        environment:
+            - TZ=Europe/Paris
+            - UDR_NAME=OAI_UDR
+            - UDR_INTERFACE_NAME_FOR_NUDR=eth0
+            - MYSQL_IPV4_ADDRESS=192.168.70.131
+            - MYSQL_USER=test
+            - MYSQL_PASS=test
+            - MYSQL_DB=oai_db
+            - WAIT_MYSQL=120
+            - USE_FQDN_DNS=yes
+            - REGISTER_NRF=yes
+            - NRF_IPV4_ADDRESS=192.168.70.130
+            - NRF_FQDN=oai-nrf
+        depends_on:
+            - mysql
+            - oai-nrf
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.136
+    oai-udm:
+        container_name: "oai-udm"
+        image: oaisoftwarealliance/oai-udm:v1.5.0
+        environment:
+            - TZ=Europe/Paris
+            - UDM_NAME=OAI_UDM
+            - SBI_IF_NAME=eth0
+            - REGISTER_NRF=yes
+            - USE_FQDN_DNS=yes
+            - UDR_IP_ADDRESS=192.168.70.136
+            - UDR_FQDN=oai-udr
+            - NRF_IPV4_ADDRESS=192.168.70.130
+            - NRF_FQDN=oai-nrf
+        depends_on:
+            - oai-udr
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.137
+    oai-ausf:
+        container_name: "oai-ausf"
+        image: oaisoftwarealliance/oai-ausf:v1.5.0
+        environment:
+            - TZ=Europe/Paris
+            - AUSF_NAME=OAI_AUSF
+            - SBI_IF_NAME=eth0
+            - USE_FQDN_DNS=yes
+            - REGISTER_NRF=yes
+            - UDM_IP_ADDRESS=192.168.70.137
+            - UDM_FQDN=oai-udm
+            - NRF_IPV4_ADDRESS=192.168.70.130
+            - NRF_FQDN=oai-nrf
+        depends_on:
+            - oai-udm
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.138
+    oai-nrf:
+        container_name: "oai-nrf"
+        image: oaisoftwarealliance/oai-nrf:v1.5.0
+        environment:
+            - TZ=Europe/Paris
+            - NRF_INTERFACE_NAME_FOR_SBI=eth0
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.130
+    oai-amf:
+        container_name: "oai-amf"
+        image: oaisoftwarealliance/oai-amf:v1.5.0
+        environment:
+            - TZ=Europe/paris
+            - MCC=208
+            - MNC=99
+            - REGION_ID=128
+            - AMF_SET_ID=1
+            - SERVED_GUAMI_MCC_0=208
+            - SERVED_GUAMI_MNC_0=99
+            - SERVED_GUAMI_REGION_ID_0=128
+            - SERVED_GUAMI_AMF_SET_ID_0=1
+            - SERVED_GUAMI_MCC_1=460
+            - SERVED_GUAMI_MNC_1=11
+            - SERVED_GUAMI_REGION_ID_1=10
+            - SERVED_GUAMI_AMF_SET_ID_1=1
+            - PLMN_SUPPORT_MCC=208
+            - PLMN_SUPPORT_MNC=99
+            - PLMN_SUPPORT_TAC=0x0001
+            # Slice 0 (222, 123)
+            - SST_0=1
+            # Slice 0 (128, 12)
+            - SST_1=128
+            - SD_1=12
+            - AMF_INTERFACE_NAME_FOR_NGAP=eth0
+            - AMF_INTERFACE_NAME_FOR_N11=eth0
+            # One single SMF instance
+            - SMF_INSTANCE_ID_0=1
+            - SMF_FQDN_0=oai-smf
+            - SMF_IPV4_ADDR_0=192.168.70.133
+            - SELECTED_0=true
+            - NF_REGISTRATION=yes
+            - SMF_SELECTION=yes
+            - USE_FQDN_DNS=yes
+            - EXTERNAL_AUSF=yes
+            - EXTERNAL_UDM=no
+            - EXTERNAL_NSSF=no
+            - NRF_IPV4_ADDRESS=192.168.70.130
+            - NRF_FQDN=oai-nrf
+            - AUSF_IPV4_ADDRESS=192.168.70.138
+            - AUSF_FQDN=oai-ausf
+            - UDM_IPV4_ADDRESS=192.168.70.137
+            - UDM_FQDN=oai-udm
+        depends_on:
+            - mysql
+            - vpp-upf
+            - oai-ext-dn
+            - oai-ausf
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.132
+    oai-smf:
+        container_name: "oai-smf"
+        image: oaisoftwarealliance/oai-smf:v1.5.0
+        environment:
+            - TZ=Europe/Paris
+            - SMF_INTERFACE_NAME_FOR_N4=eth0
+            - SMF_INTERFACE_NAME_FOR_SBI=eth0
+            - DEFAULT_DNS_IPV4_ADDRESS=172.21.3.100
+            - DEFAULT_DNS_SEC_IPV4_ADDRESS=8.8.8.8
+            - AMF_IPV4_ADDRESS=192.168.70.132
+            - AMF_FQDN=oai-amf
+            - UDM_IPV4_ADDRESS=192.168.70.137
+            - UDM_FQDN=oai-udm
+            - UPF_IPV4_ADDRESS=192.168.70.201
+            - UPF_FQDN_0=vpp-upf.node.5gcn.mnc99.mcc208.3gppnetwork.org
+            - NRF_IPV4_ADDRESS=192.168.70.130
+            - NRF_FQDN=oai-nrf
+            - DEFAULT_CSCF_IPV4_ADDRESS=127.0.0.1  # only needed when ims is being used
+            - USE_LOCAL_SUBSCRIPTION_INFO=yes  #Set to yes if SMF uses local subscription information instead of from an UDM
+            - REGISTER_NRF=yes
+            - DISCOVER_UPF=yes
+            - USE_FQDN_DNS=yes
+            - ENABLE_USAGE_REPORTING=yes
+            # Slice 0 (1, 0xFFFFFF)
+            - DNN_NI0=oai
+            - TYPE0=IPv4
+            - DNN_RANGE0=12.1.1.2 - 12.1.1.253
+            - NSSAI_SST0=1
+            - SESSION_AMBR_UL0=200Mbps
+            - SESSION_AMBR_DL0=400Mbps
+        extra_hosts:
+            - "vpp-upf.node.5gcn.mnc99.mcc208.3gppnetwork.org:192.168.70.201"
+        depends_on:
+            - oai-amf
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.133
+    vpp-upf:
+        privileged: true
+        container_name: "vpp-upf"
+        image: oaisoftwarealliance/oai-upf-vpp:v1.5.0
+        environment:
+            - IF_1_IP=192.168.70.201
+            - IF_1_TYPE=N4
+            - IF_2_IP=192.168.72.201
+            - IF_2_TYPE=N3
+            - IF_2_NWI=access.oai.org
+            - IF_3_IP=192.168.73.201
+            - IF_3_TYPE=N6
+            - IF_3_IP_REMOTE=192.168.73.135 # EXT-DN IP Address
+            - IF_3_NWI=internet.oai.org
+            - NAME=VPP-UPF
+            - MNC=99
+            - MCC=208
+            - REALM=3gppnetwork.org
+            - VPP_MAIN_CORE=0
+            - VPP_CORE_WORKER=1
+#           - VPP_PLUGIN_PATH=/usr/lib64/vpp_plugins/                # RHEL7
+            - VPP_PLUGIN_PATH=/usr/lib/x86_64-linux-gnu/vpp_plugins/ # Ubntu18.04
+            - SNSSAI_SD=0xFFFFFF
+            - SNSSAI_SST=1
+            - DNN=oai
+            - REGISTER_NRF=yes
+            - NRF_IP_ADDR=192.168.70.130
+            - NRF_PORT=80
+            - HTTP_VERSION=1
+        depends_on:
+            - oai-nrf
+        healthcheck:
+            test: /bin/bash -c "pgrep vpp"
+            interval: 10s
+            timeout: 5s
+            retries: 5
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.134
+            public_net_access:
+                ipv4_address: 192.168.72.134
+            public_net_core:
+                ipv4_address: 192.168.73.134
+    oai-ext-dn:
+        privileged: true
+        init: true
+        container_name: "oai-ext-dn"
+        image: oaisoftwarealliance/trf-gen-cn5g:latest
+        entrypoint: /bin/bash -c \
+              "iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE;"\
+              "ip route add 12.1.1.0/24 via 192.168.73.201 dev eth0; ip route; sleep infinity"
+        command: ["/bin/bash", "-c", "trap : SIGTERM SIGINT; sleep infinity & wait"]
+        healthcheck:
+            test: /bin/bash -c "iptables -L -t nat | grep MASQUERADE"
+            interval: 10s
+            timeout: 5s
+            retries: 5
+        networks:
+            public_net_core:
+                ipv4_address: 192.168.73.135
+networks:
+    public_net:
+        driver: bridge
+        name: demo-oai-public-net
+        ipam:
+            config:
+                - subnet: 192.168.70.0/24
+        driver_opts:
+            com.docker.network.bridge.name: "demo-oai"
+    public_net_access:
+        name: oai-public-access
+        ipam:
+            config:
+                - subnet: 192.168.72.0/24
+        driver_opts:
+            com.docker.network.bridge.name: "cn5g-access"
+    public_net_core:
+        name: oai-public-core
+        ipam:
+            config:
+                - subnet: 192.168.73.0/24
+        driver_opts:
+            com.docker.network.bridge.name: "cn5g-core"

mep/docker-compose/docker-compose-mep.yaml

+version: '3.8'
+services:
+  #######################################
+  # OAI MEP (Kong Gateway)
+  #######################################
+  oai-mep-gateway:
+    container_name: "oai-mep-gateway"
+    image: kong:latest
+    restart: always
+    hostname: "oai-mep.org"
+    environment:
+      KONG_PG_HOST: oai-mep-gateway-db
+      KONG_PG_PASSWORD: kong
+      KONG_PROXY_LISTEN: 0.0.0.0:80
+      KONG_PROXY_LISTEN_SSL: 0.0.0.0:443
+      KONG_ADMIN_LISTEN: 0.0.0.0:8001   # admin interface of kong
+    depends_on:
+      - kong-migration
+      - oai-mep-gateway-db
+    healthcheck:
+      test: netstat -anpe | grep '8001' | grep 'LISTEN'
+      interval: 5s
+      timeout: 2s
+      retries: 15
+    ports:
+      - 8001
+      - 80
+    networks:
+       public_net:
+          ipv4_address: 192.168.70.2
+  kong-migration:
+    image: kong:latest
+    command: "kong migrations bootstrap"
+    container_name: "migeration-tmp"
+    networks:
+      - kong-net
+    restart: on-failure
+    environment:
+      KONG_PG_HOST: oai-mep-gateway-db
+      KONG_PG_PASSWORD: kong
+    depends_on:
+      - oai-mep-gateway-db
+    networks:
+       public_net:
+          ipv4_address: 192.168.70.3
+  oai-mep-gateway-db:
+    image: postgres:9.6
+    restart: always
+    container_name: "oai-mep-gateway-db"
+    networks:
+      - kong-net
+    environment:
+      POSTGRES_USER: kong
+      POSTGRES_DB: kong
+      POSTGRES_PASSWORD: kong
+    healthcheck:
+      test: ["CMD", "pg_isready", "-U", "kong"]
+      interval: 5s
+      timeout: 5s
+      retries: 5
+    networks:
+       public_net:
+          ipv4_address: 192.168.70.4
+  # #######################################
+  # # OAI MEP (Registry Service)
+  # #######################################
+  oai-mep-registry:
+    image: oaisoftwarealliance/oai-mep:latest
+    container_name: "oai-mep-registry"
+    hostname: "oai-mep-registry.org"
+    environment:
+      CONFIG_FILE: '/usr/local/etc/configuration.yaml'
+      MOUNT_CONFIG: 'no'
+      HOST: '192.168.70.5'
+      PORT: 80              #application port
+      LOG_LEVEL: info
+      FQDN: 'oai-mep.org'   # same as oai-mep-backend.hostname
+      BACKEND: 'oai-mep-gateway:8001' # admin interface of kong
+      DATABASE_HOST: 192.168.70.167
+      DATABASE_PORT: 27017
+      DATABASE_USER: admin
+      DATABASE_PASSWORD: linux
+      RESET_DATABASE: 'yes'    #whenever mep is restarted database will be re-initialized
+    depends_on:
+      - oai-mep-gateway
+    healthcheck:
+      test: /bin/sh -c "pgrep oai_mep"
+      interval: 5s
+      timeout: 5s
+      retries: 5
+    networks:
+       public_net:
+          ipv4_address: 192.168.70.5
+networks:
+    public_net:
+        driver: bridge
+        name: demo-oai-public-net
+        ipam:
+            config:
+                - subnet: 192.168.70.0/24
+        driver_opts:
+            com.docker.network.bridge.name: "demo-oai"
\ No newline at end of file

mep/docker-compose/docker-compose-ran.yaml

+version: '3.8'
+services:
+    oai-gnb:
+        image: oaisoftwarealliance/oai-gnb:mep-compatible
+        privileged: true
+        container_name: rfsim5g-oai-gnb
+        environment:
+            RFSIMULATOR: server
+            USE_SA_TDD_MONO: 'yes'
+            GNB_NAME: gnb-rfsim
+            #USE_B2XX: 'yes'  #only needed when using B210
+            #USE_VOLUMED_CONF: 'yes' #only needed when mounting the configuration file
+            TAC: 1
+            MCC: '208'
+            MNC: '99'
+            MNC_LENGTH: 2
+            NSSAI_SST: 1
+            AMF_IP_ADDRESS: 192.168.70.132
+            GNB_NGA_IF_NAME: demo-oai
+            GNB_NGA_IP_ADDRESS: 192.168.70.160
+            GNB_NGU_IF_NAME: cn5g-access
+            GNB_NGU_IP_ADDRESS: 192.168.72.160
+            SDR_ADDRS: serial=XXXXXXX
+            USE_ADDITIONAL_OPTIONS: --sa -E --rfsim --log_config.global_log_options level,nocolor,time   #rfsim
+            #USE_ADDITIONAL_OPTIONS: --sa --continuous-tx --log_config.global_log_options level,nocolor,time,line_num,function #(B210)
+        volumes:
+            - shared_lib:/usr/local/lib/flexric/
+            - ./conf/flexric.conf:/usr/local/etc/flexric/flexric.conf
+          #  -  /dev/bus/usb/:/dev/bus/usb/ (B210)
+          #  - ./gnb-n77.conf:/opt/oai-gnb/etc/mounted.conf (B210) config file should be present
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.160
+            public_net_access:
+                ipv4_address: 192.168.72.160
+        healthcheck:
+            test: /bin/bash -c "pgrep nr-softmodem"
+            interval: 10s
+            timeout: 5s
+            retries: 5
+    oai-nr-ue:
+        image: oaisoftwarealliance/oai-nr-ue:2023.w06
+        privileged: true
+        container_name: rfsim5g-oai-nr-ue
+        environment:
+            RFSIMULATOR: 192.168.70.160
+            FULL_IMSI: '208990100001120'
+            FULL_KEY: 'fec86ba6eb707ed08905757b1bb44b8f'
+            OPC: 'C42449363BBAD02B66D16BC975D77CC1'
+            DNN: oai
+            NSSAI_SST: 1
+            USE_ADDITIONAL_OPTIONS: -E --sa --rfsim -r 106 --numerology 1 -C 3619200000 --nokrnmod --log_config.global_log_options level,nocolor,time
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.161
+        healthcheck:
+            test: /bin/bash -c "pgrep nr-uesoftmodem"
+            interval: 10s
+            timeout: 5s
+            retries: 5
+    oai-flexric:
+        image: oaisoftwarealliance/oai-flexric:1.0
+        container_name: oai-flexric
+        privileged: true
+        restart: always
+        command: ["/usr/local/bin/nearRT-RIC"]
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.164
+        depends_on:
+            - oai-gnb
+        volumes:
+            - shared_lib:/usr/local/lib/flexric/
+            - ./conf/flexric.conf:/usr/local/etc/flexric/flexric.conf
+        healthcheck:
+            test: /bin/bash -c "pgrep nearRT-RIC"
+            interval: 10s
+            timeout: 5s
+            retries: 5
+    oai-rnis-xapp:
+        image: oaisoftwarealliance/oai-flexric:1.0
+        container_name: oai-rnis-xapp
+        command: [ "python3","-u","rnisxapp.py" ]
+        privileged: true
+        restart: always
+        # depends_on:
+        #     - rabbitmq
+        volumes:
+            - shared_lib:/usr/local/lib/flexric/
+            - ./conf/flexric.conf:/usr/local/etc/flexric/flexric.conf
+            - ./conf/config.ini:/flexric/build/examples/xApp/python3/config.ini
+        healthcheck:
+            test: /bin/bash -c "pgrep python3"
+            interval: 10s
+            timeout: 5s
+            retries: 5
+        networks:
+            public_net:
+                ipv4_address: 192.168.70.165
+    rabbitmq:
+        image: rabbitmq:3-management-alpine
+        container_name: 'rabbitmq-broker'
+        environment:
+          RABBITMQ_DEFAULT_USER: user
+          RABBITMQ_DEFAULT_PASS: password
+        healthcheck:
+          test: netstat -anpe | grep '5672' | grep 'LISTEN'
+          interval: 5s
+          timeout: 2s
+          retries: 15
+        ports:
+          - 5672
+          - 15672
+        networks:
+           public_net:
+              ipv4_address: 192.168.70.166
+volumes:
+    shared_lib:
+
+networks:
+    public_net:
+        driver: bridge
+        name: demo-oai-public-net
+        ipam:
+            config:
+                - subnet: 192.168.70.0/24
+        driver_opts:
+            com.docker.network.bridge.name: "demo-oai"
+    public_net_access:
+        name: oai-public-access
+        ipam:
+            config:
+                - subnet: 192.168.72.0/24
+        driver_opts:
+            com.docker.network.bridge.name: "cn5g-access"

mep/docker-compose/docker-compose-rnis.yaml

+version: "3.8"
+services:
+  #######################################
+  # OAI-RNIS
+  #######################################
+  oai-rnis:
+    image: oaisoftwarealliance/oai-rnis:latest
+    container_name: 'oai-rnis'
+    environment:
+      CONFIG_FILE: '/usr/local/etc/configuration.yaml'
+      RNIS_DESCRIPTOR: '/usr/local/etc/rnis-descriptor.yaml'
+      MOUNT_CONFIG: 'no'
+      PORT: 80
+      LOG_LEVEL: info
+      REGISTER_TO_MEP: 'yes'
+      MEP_URL: 'http://oai-mep.org/service_registry/v1/register'
+      HOST: 192.168.70.169
+      CN_HANDLER_IP: 192.168.70.168
+      CN_HANDLER_PORT: 80
+      RABBITMQ_IP: 192.168.70.166
+      RABBITMQ_PORT: 5672
+      RABBITMQ_USERNAME: user
+      RABBITMQ_PASSWORD: password
+    healthcheck:
+      test: /bin/sh -c "pgrep oai_rnis"
+      interval: 5s
+      timeout: 2s
+      retries: 15
+    networks:
+       public_net:
+          ipv4_address: 192.168.70.169
+networks:
+    public_net:
+        driver: bridge
+        name: demo-oai-public-net
+        ipam:
+            config:
+                - subnet: 192.168.70.0/24
+        driver_opts:
+            com.docker.network.bridge.name: "demo-oai"

mep/docker-compose/healthscripts/mysql-healthcheck.sh

+#!/bin/bash
+set -eo pipefail
+
+if [ "$MYSQL_ROOT_PASSWORD" ] && [ -z "$MYSQL_USER" ] && [ -z "$MYSQL_PASSWORD" ]; then
+	echo >&2 'Healthcheck error: cannot determine root password (and MYSQL_USER and MYSQL_PASSWORD were not set)'
+	exit 0
+fi
+
+host="$(hostname --ip-address || echo '127.0.0.1')"
+user="${MYSQL_USER:-root}"
+export MYSQL_PWD="${MYSQL_PASSWORD:-$MYSQL_ROOT_PASSWORD}"
+
+args=(
+	# force mysql to not use the local "mysqld.sock" (test "external" connectivity)
+	-h"$host"
+	-u"$user"
+	--silent
+)
+
+STATUS=0
+if command -v mysqladmin &> /dev/null; then
+	if mysqladmin "${args[@]}" ping > /dev/null; then
+		database_check=$(mysql -u$user -D oai_db --silent -e "SELECT * FROM AuthenticationSubscription;")
+		if [[ -z $database_check ]]; then
+			echo "Healthcheck error: oai_db not populated"
+			STATUS=1
+		fi
+		STATUS=0
+	else
+		echo "Healthcheck error: Mysql port inactive"
+		STATUS=1
+	fi
+else
+	if select="$(echo 'SELECT 1' | mysql "${args[@]}")" && [ "$select" = '1' ]; then
+		database_check=$(mysql -u$user -D oai_db --silent -e "SELECT * FROM AuthenticationSubscription;")
+		if [[ -z $database_check ]]; then
+			echo "Healthcheck error: oai_db not populated"
+			STATUS=1
+		fi
+		STATUS=0
+	else
+		echo "Healthcheck error: Mysql port inactive"
+		STATUS=1
+	fi
+fi
+exit $STATUS

mep/examples/example-mec-app.py

+# Copyright © 2023 the OAI-RNIS Authors
+
+# Licensed under the Apache License, Version 2.0 (the
+# "License"); you may not use this file except in compliance
+# with the License.  You may obtain a copy of the License at
+
+#   http://www.apache.org/licenses/LICENSE-2.0
+
+# Unless required by applicable law or agreed to in writing,
+# software distributed under the License is distributed on an
+# "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
+# KIND, either express or implied.  See the License for the
+# specific language governing permissions and limitations
+# under the License.
+# Contact: netsoft@eurecom.fr
+
+import flask
+from flask import request, jsonify
+import socket
+import json
+import requests
+
+collected_data = {}
+
+hostname=socket.gethostname()
+ip_addr= "192.168.70.1" #socket.gethostbyname(hostname)
+port = 30020
+
+print(f"Dashboard URL:{ip_addr}:{port}/dashboard")
+
+### create a subscription for receiving l2 measurements
+sub_endpoint = "http://oai-mep.org/rnis/v2/subscriptions"
+sub_body ={
+  "callbackReference": f"http://{ip_addr}:{port}/subscriptions/l2meas-200",
+  "filterCriteriaNrMrs": {},
+  "subscriptionType": "NrMeasRepUeSubscription",
+  "expiryDeadline": {
+    "nanoSeconds": 12133423,
+    "seconds": 123124234
+  }
+}
+requests.post(url =sub_endpoint, json=sub_body)
+
+print("Subscribed to RNIS")
+
+app = flask.Flask(__name__)
+
+
+@app.route('/subscriptions/l2meas-200', methods=[ 'POST'])
+def receive_notification():
+    if request.method == 'POST':
+        content = request.get_json(force=True)
+        print(content)
+        kpis = content["Report"]
+        for aid in content["AssociateId"]:
+            if aid not in collected_data:
+                collected_data[aid] = {}
+            for kpi in kpis:
+                collected_data[aid]["kpi"] = kpi
+    return "OK"
+
+@app.route('/dashboard', methods=['GET'])
+def dashboard():
+    return "<h1> Network Monitoring Dashboard</h1> " + json.dumps(collected_data)
+
+app.config["DEBUG"] = False
+app.run(ip_addr, port=port)
